WideBody Enclosure

995204

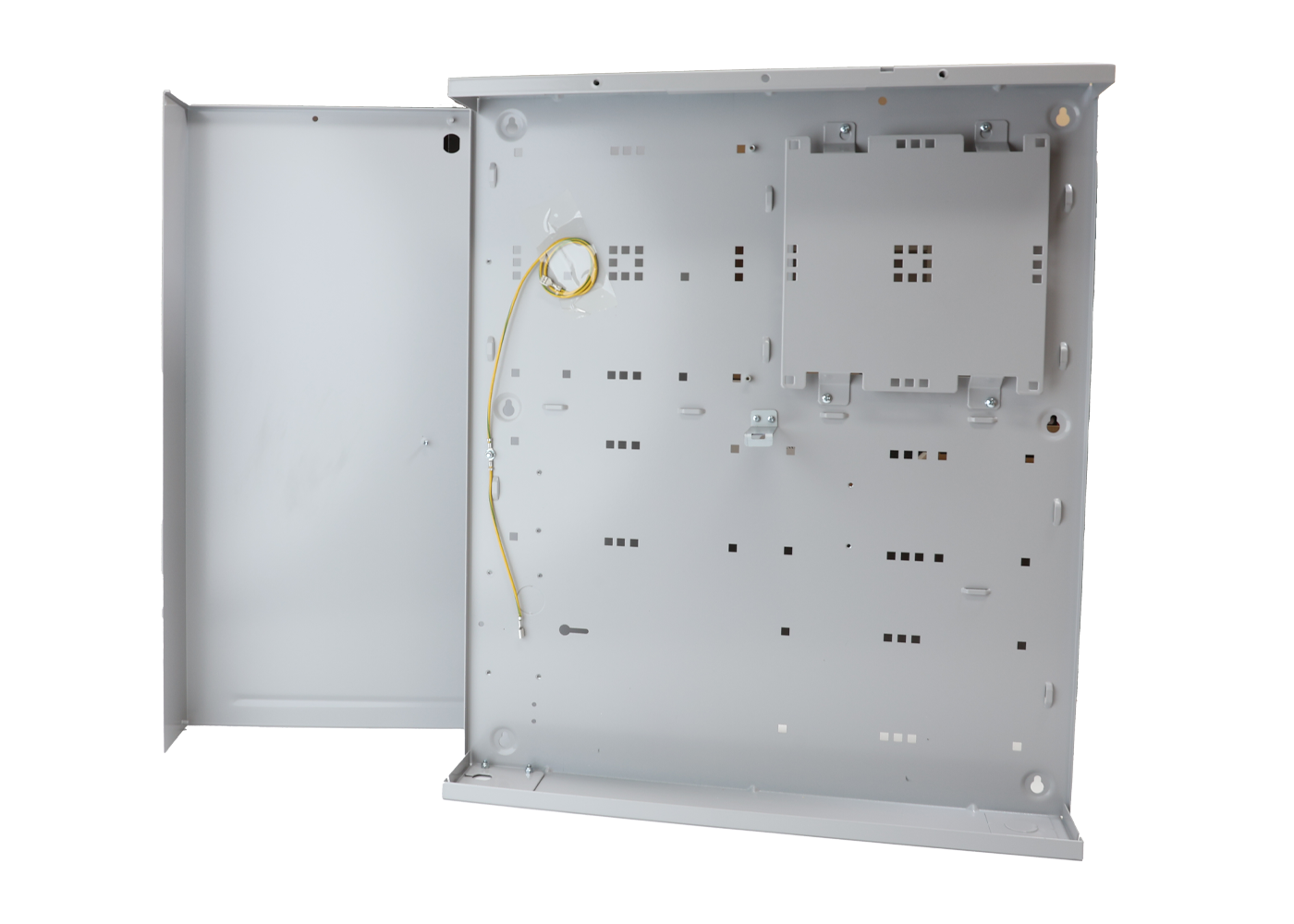

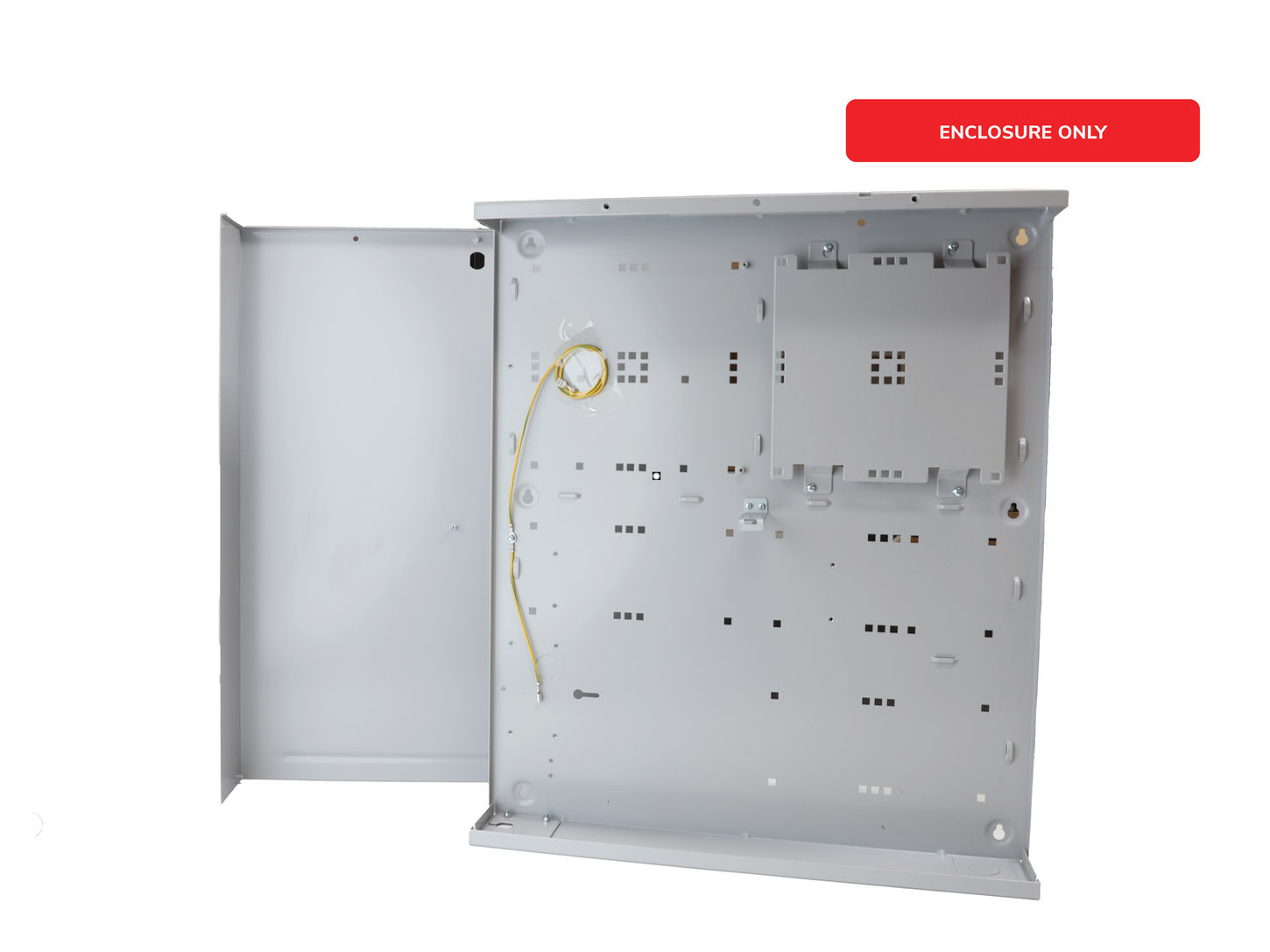

The WideBody Enclosure (WB) is a key lockable sturdy metal enclosure designed for installation of Integriti Access Control solutions where all the Integriti equipment, 3 or 8Amp power supply and backup batteries can be contained within a single tamper monitored enclosure.

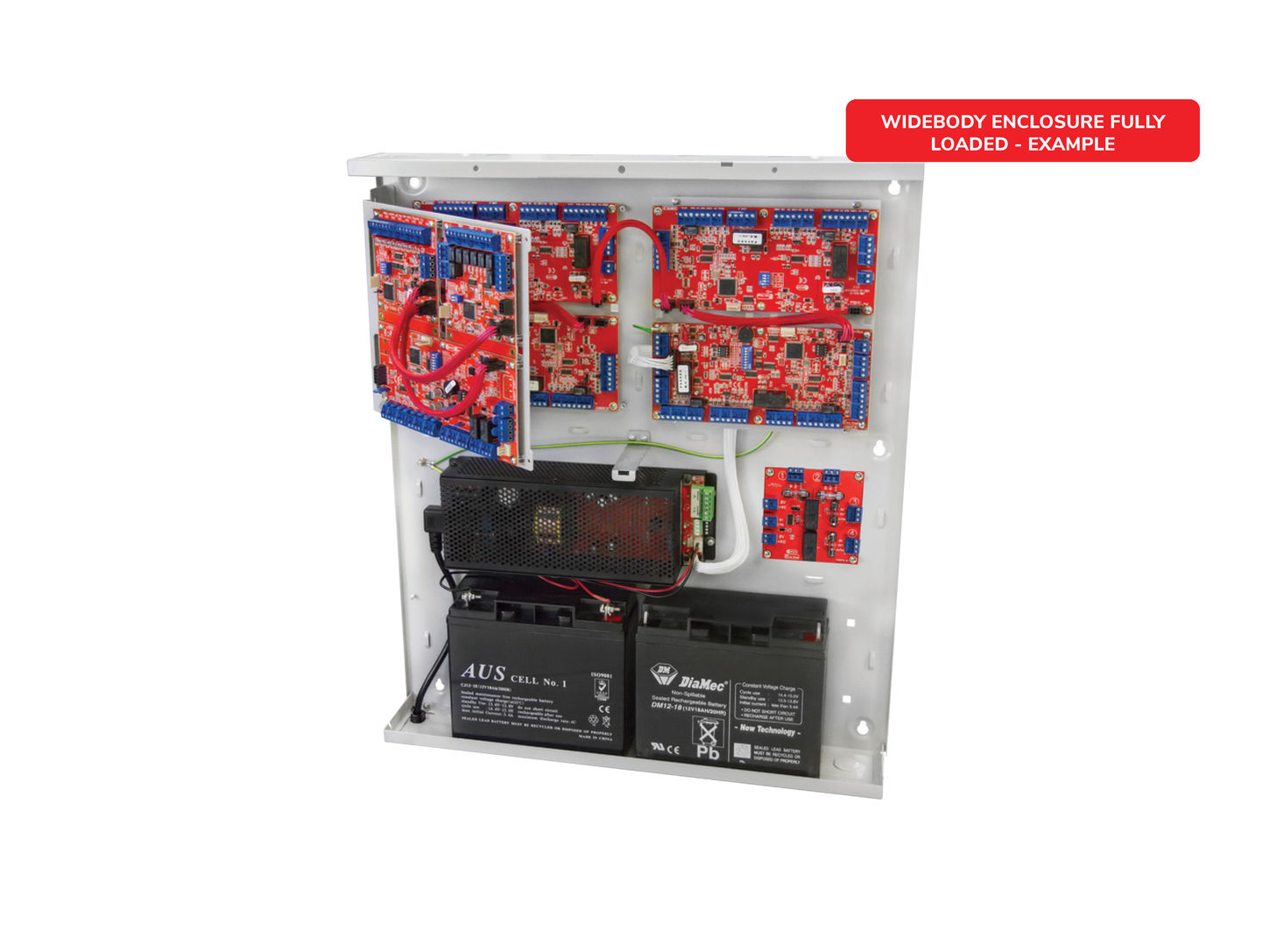

The enclosure will house all the equipment required for as many as 8 doors. Multiple enclosures can be installed throughout a building of any size to provide Access Control for the entire facility while keeping the total quantity of installed enclosures to a minimum.


The WideBody design provides very efficient use of wall mounting space, while it’s low profile side elevation protrudes less than 100mm from the mounting surface.

Enclosure Features

  • Key Lockable robust metal enclosure

  • Designed for Access Control installations

  • Houses all equipment required for up to 8 doors

  • Space for 2 x 18Ah Lead Acid Batteries

  • Low Profile design Size 595(L) x 512(W) x 95(D)

  • 3 x 50x50mm conduit entry points

  • 7 x 25mm round conduit entry points

  • Discrete thru-wall cable entry via back panel

  • Provision for dual front/rear tamper monitoring

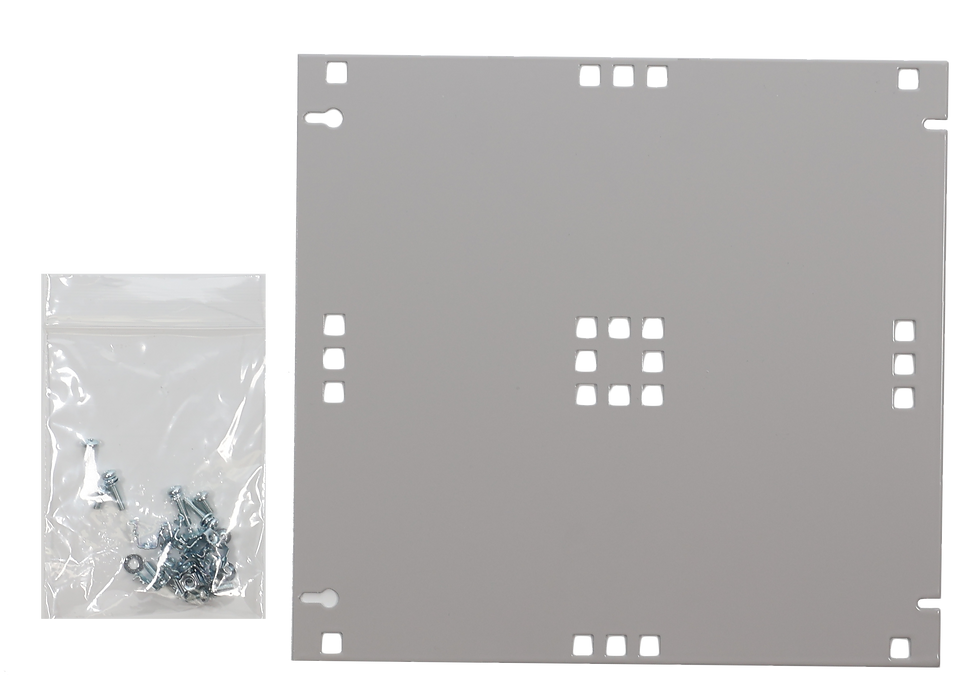

  • Includes equipment mounting plate

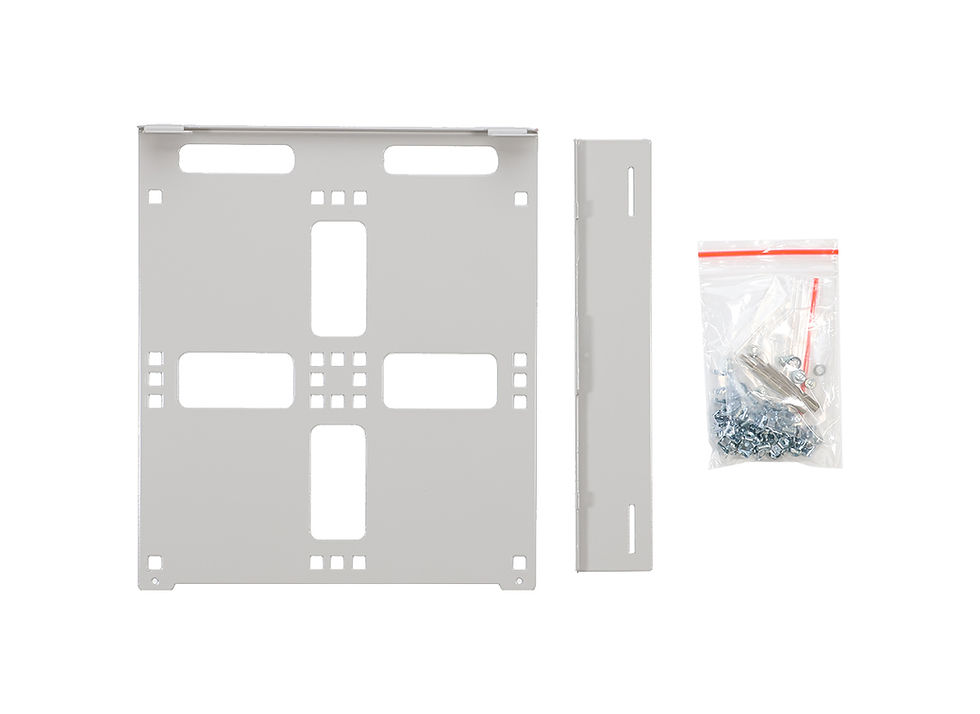

  • Hinged Expansion Plate available (Part 999027)


Designed to house:

  • Controllers

  • LAN Expansion Modules

  • UniBus Expansion Modules

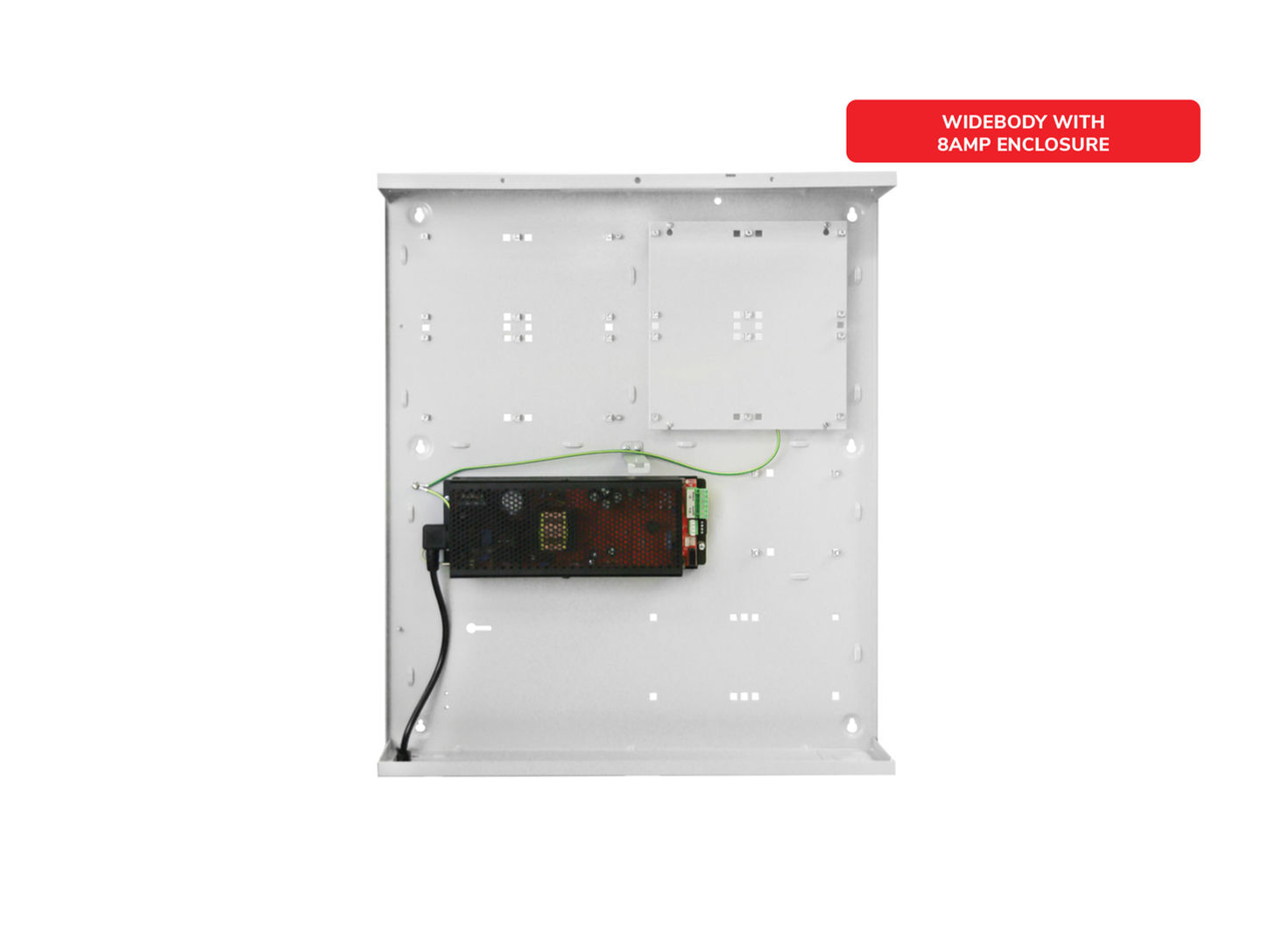

  • 3 and 8Amp SMART Power Supplies
