8 Zone LAN Expander

996005PCB&K

The 8 Zone LAN Expander Module connects to Inner Range controllers via RS-485 LAN and provides an additional 8 Zone Inputs, 2 Auxiliary Outputs and 2 Siren drivers. Up to 99 Zone Expander Modules can be connected to the RS-485 LAN or via IP LAN if connected using Ethernet Bridge or CLOE devices.*


The 8 Zone LAN Expander Module also offers a UniBus in-cabinet

expansioninterface allowing further expansion of Zone Inputs and Auxiliary Outputs using plug on UniBus expansion devices fitted within the same tamper-protected enclosure. Up to 32 Zone Inputs or 32 Auxiliary Outputs can be connected to the Module (32 Zones and 26 Auxiliaries or 24 Zones and 32 Auxiliaries at the same time).


* Where it is necessary to connect large numbers of Zone Expanders to the RS-485 LAN, the use of LAN

Isolators or other

8 Zone LAN Expander
Module Features
  • RS-485 LAN connectivity

  • UniBus In-Cabinet Expansion Interface

  • 8 Zone Inputs - Multistate or Analogue

  • 2 Auxiliary Output Relays

  • External Inner Range power supply connection

  • Three options for power supply size 2Amp, 3Amp & 8Amp

  • Six enclosure size options

  • Dedicated Tamper Input

  • Internal & External variable tone Siren Outputs

  • 4 Terminals supplying 13.75V DC nominal Detector Power

  • Over-The-Wire firmware upgradable

  • On-board diagnostic LED’s to assist with commissioning and troubleshooting

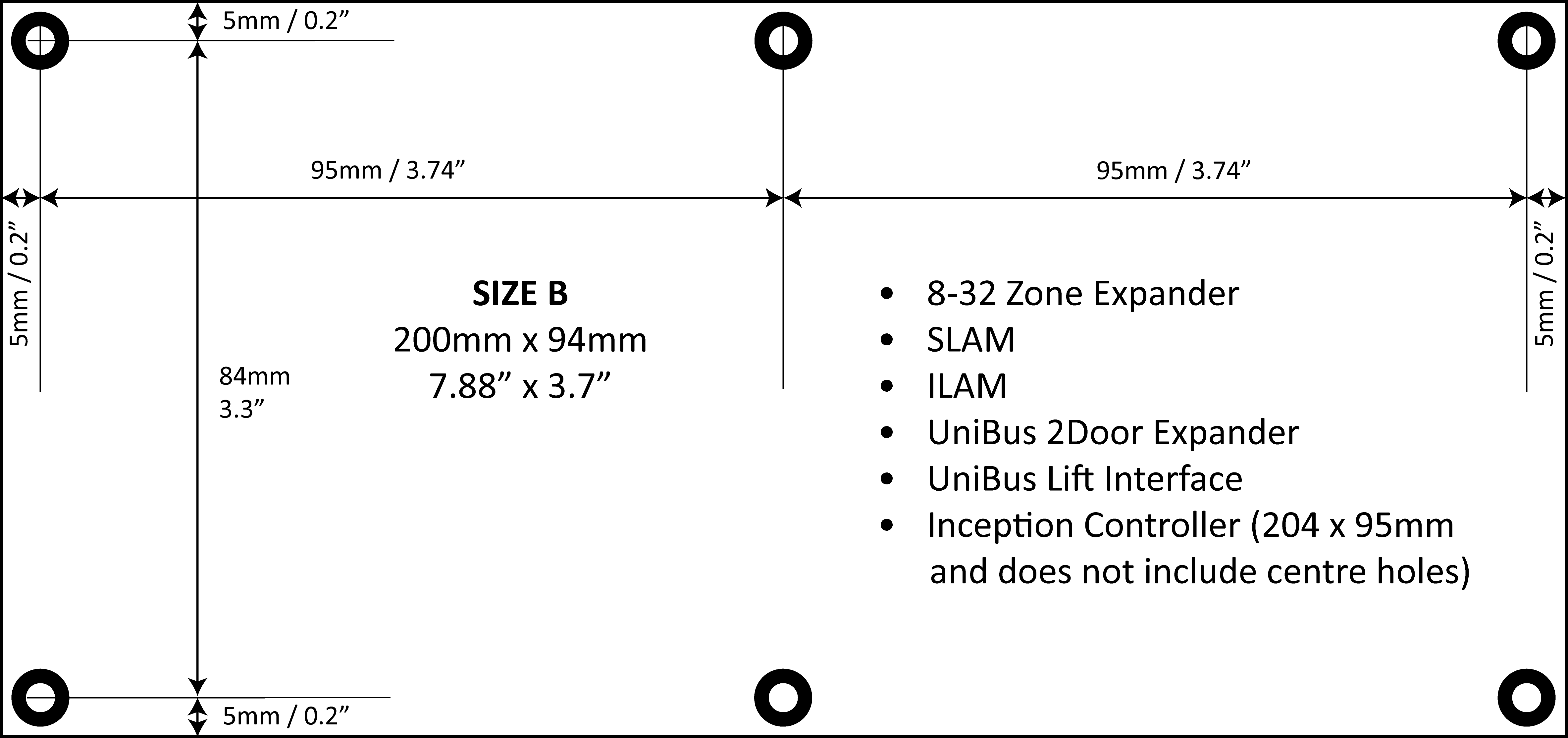

  • Small PCB size 200 x 95mm

  • Built-in module locater buzzer


Expansion Capabilities
  • Zone Inputs - Expandable to 32 via UniBus*

  • Auxiliary Outputs (Relays) - Expandable to 32 via UniBus*


*32 Zones and 26 Auxiliaries or 24 Zones and 32 Auxiliaries at the same time
