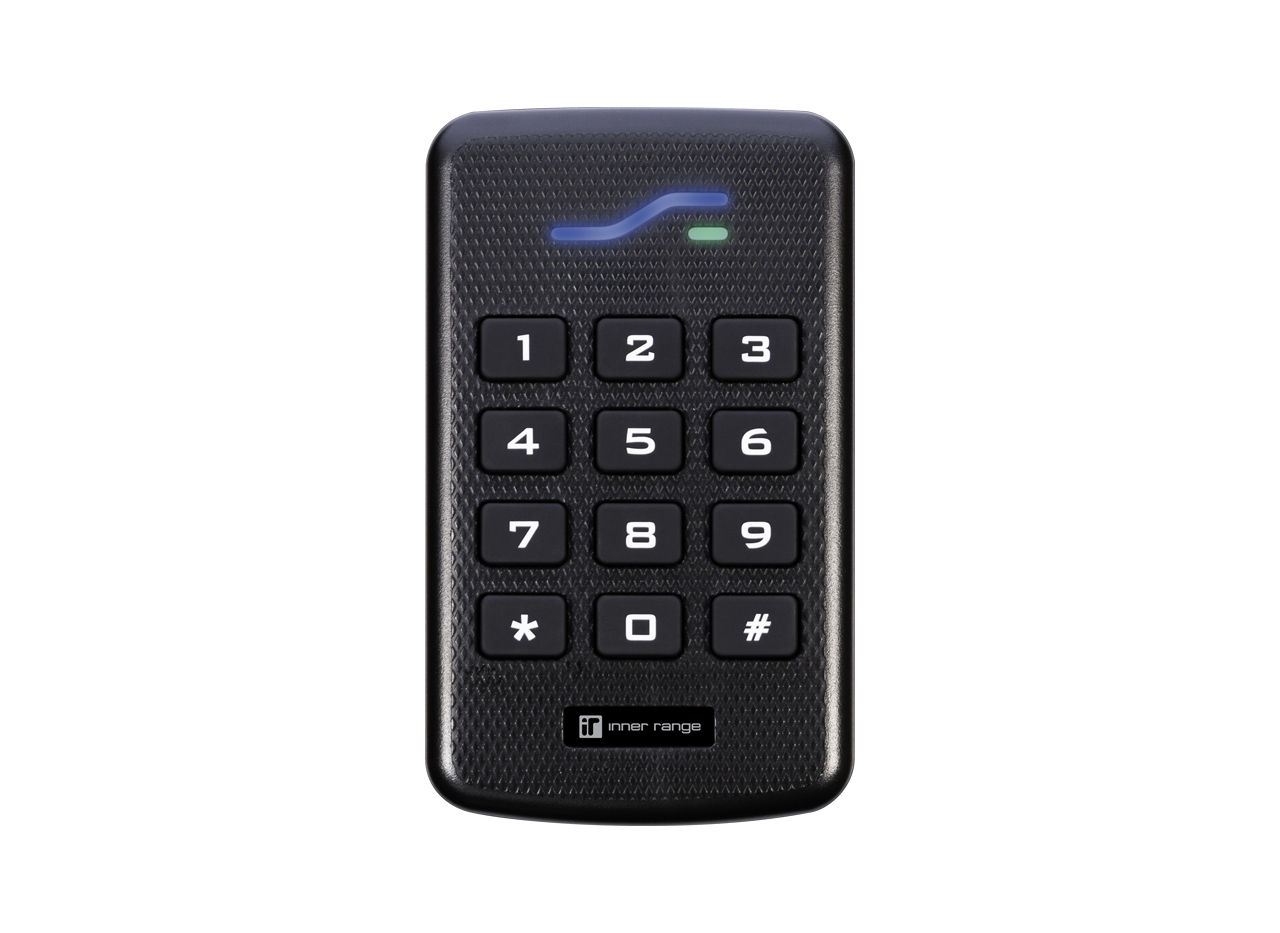

Mobile Access Keypad
994726
The Mobile Access Keypad is a combined Bluetooth enabled, IP67 rated Keypad and SIFER Smart Card reader that allows dual credential Mobile Credential / Card & PIN high security access control. (PIN only or Mobile Credential / Card only is also supported).
The Keypad is a multi-drop RS-485 device that employs 128-bit AES encryption from the card/keypad through to the door module, providing a far superior level of security than that of traditional Wiegand based keypads & card readers.
These Keypads utilise the Mifare DESFire© EV1/EV2/EV3 card format and utilise a superset of the OSDP protocol, which allows the keypads to be deployed on any system capable of using OSDP. Keypads are connected to the RS-485 reader port for full Reader-In and Reader- Out operation of various Inner Range products as below.
Integriti Access Controller (IAC) - Up to 16 Keypads/Readers on-board
Intelligent LAN Access Module (ILAM) - Up to 16 Keypads/Readers
Standard LAN Access Module (SLAM) - Up to 4 Keypads/Readers
Inception Controller - Up to 8 Keypads/Readers on-board
SIFER Keypads are IP67 rated and available with site-specific encryption keys.
