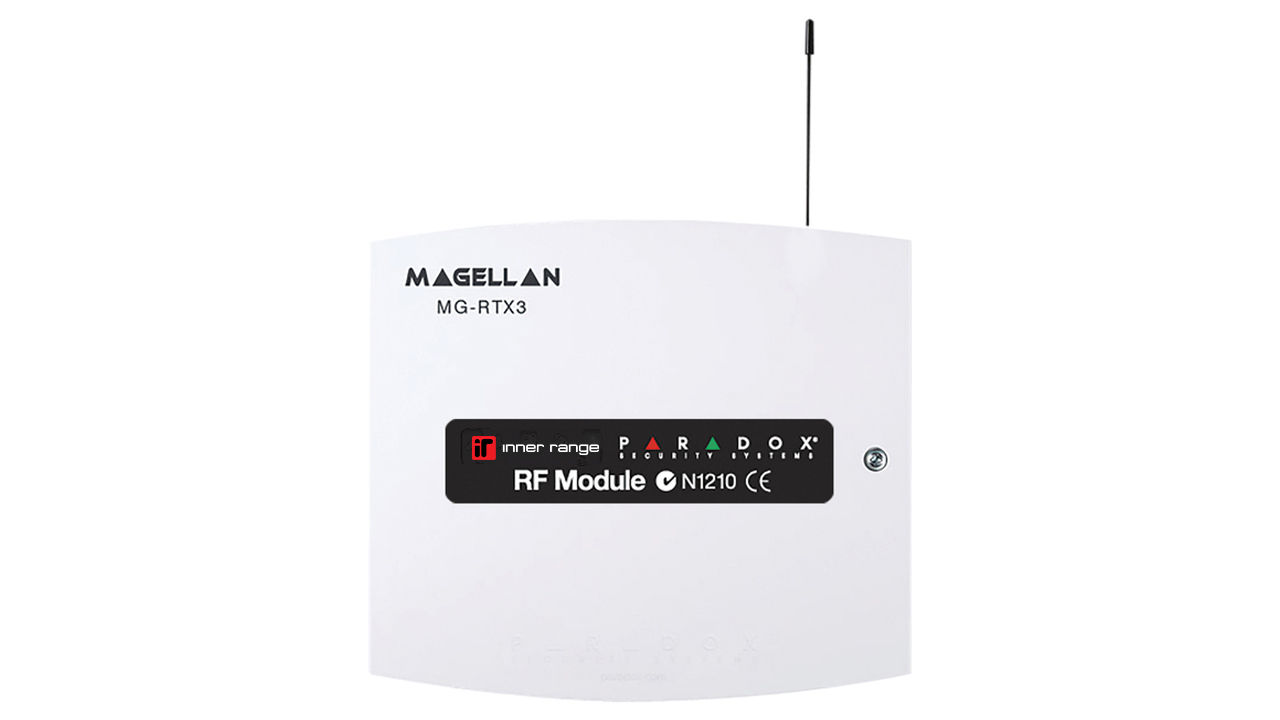

Paradox RF Expander Module

995025

The Inner Range - Paradox RF module is a cost-effective wireless RF solution that allows Paradox Magellan Wireless PIR’s, reed switches, smoke detectors and remote control fobs to function on Inner Range systems. Wireless functionality is added to the Inner Range Controller with the inclusion of Paradox Magellan wireless devices, with each Paradox Expander Module supporting 32 wireless

detection zones (PIR’s, reed switches and smoke detectors). The interface supports monitoring low battery alarms for all wireless devices.


The Paradox REM2 and REM3 remote control fobs provide bi-directional audible and visual feedback when arming or disarming the system and when controlling output auxiliaries. In addition to this, the REM 2 & 3 remotes feature an information button which can be used to indicate the current status of the security area.


All fobs feature buttons which can be programmed to provide different actions and four or six digit wireless PIN verification is also provided when using the REM3 remote control unit.


Paradox wireless devices:
  • Remote Controls & Fobs

  • Motion Detectors

  • Wireless Door Contacts (Reed Switches)

  • Smoke and Glass Break Detectors

Paradox RF Expander Module
Module Features



  • The Paradox RF Expander connects directly to the Inner Range RS-485LAN

  • Each expander will provide up to 32 wireless detection zones

  • Cost effective RF Wireless Solution

  • Fully compatible with selected Paradox Magellan wireless devices: Detectors, Door Contacts, RF Fobs and Smoke Detectors

  • Bi-directional wireless audible & visual feedback on selected RF Fobs for area arming/disarming and output control

  • Wireless PIN entry using selected models of RF Fobs

  • Low Battery supervision & reporting from all wireless devices

  • Wireless panic input
